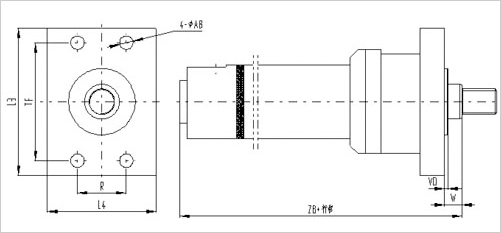

※頭部長方法蘭型外形尺寸(YHG1-**/*×**F1-*L1*)
|
|
缸徑
|
40
|
50
|
63
|
80
|
90
|
100
|
110
|
125
|
|
W
|
16
|
18
|
20
|
22
|
23
|
25
|
25
|
28
|
|
ZB
|
198
|
213
|
234
|
260
|
280
|
310
|
320
|
335
|
|
R
|
40.6
|
48.2
|
55.5
|
63.1
|
120
|
120
|
140
|
150
|
|
TF
|
98
|
116.4
|
134
|
152.5
|
168
|
184.8
|
200
|
217.1
|
|
VD
|
3
|
4
|
4
|
4
|
4
|
5
|
5
|
5
|
|
L4
|
86
|
95
|
115
|
140
|
170
|
185
|
205
|
225
|
|
L3
|
120
|
140
|
165
|
190
|
210
|
230
|
245
|
26
|
|
FB
|
9
|
11.5
|
13.5
|
17.5
|
22
|
22
|
22
|
22
|
|
| |
|

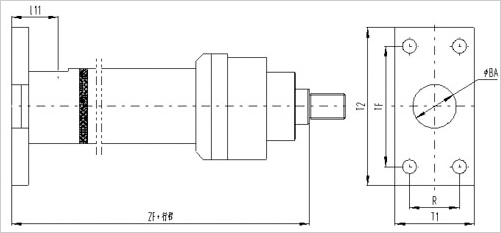

※尾部長方法蘭型外形尺寸（YHG1-**/*×**F2-*L1*）
|
|
|
|
缸徑
|
40
|
50
|
63
|
80
|
90
|
100
|
110
|
125
|
|
ZF
|
206
|
225
|
249
|
282
|
302
|
332
|
342
|
357
|
|
FB
|
9
|
11.5
|
13.5
|
17.5
|
22
|
22
|
22
|
22
|
|
R
|
40.6
|
48.2
|
55.5
|
63.1
|
70
|
76.5
|
83
|
90.2
|
|
T1
|
65
|
75
|
85
|
100
|
115
|
120
|
130
|
155
|
|
TF
|
98
|
116.4
|
134
|
152.5
|
168
|
184.8
|
200
|
217.1
|
|
T2
|
120
|
140
|
164
|
200
|
210
|
230
|
245
|
260
|
|
BA
|
20
|
30
|
38
|
55
|
55
|
68
|
60
|
80
|
|
L11
|
42
|
38
|
50
|
75
|
75
|
79
|
82
|
82
|
|
| |
|

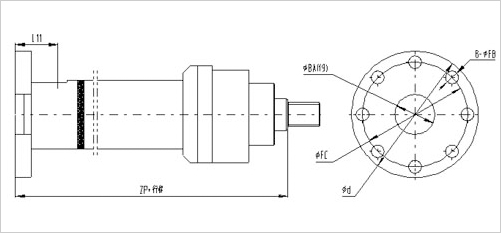

※尾部圓形法蘭型外形尺寸（YHG1-**/*×**F2-*L1*）
|
|
|
|
缸徑
|
40
|
50
|
63
|
80
|
90
|
100
|
110
|
125
|
140
|
150
|
160
|
180
|
200
|
220
|
250
|
280
|
320
|
|
FC
|
106
|
126
|
145
|
165
|
195
|
210
|
230
|
250
|
265
|
280
|
300
|
325
|
355
|
390
|
430
|
470
|
530
|
|
фD
|
126
|
150
|
175
|
200
|
240
|
255
|
275
|
295
|
310
|
325
|
345
|
375
|
405
|
445
|
485
|
525
|
595
|
|
L11
|
42
|
38
|
50
|
50
|
68
|
75
|
79
|
82
|
88
|
90
|
95
|
105
|
105
|
120
|
136
|
140
|
143
|
|
BA
|
20
|
30
|
38
|
38
|
55
|
55
|
68
|
60
|
95
|
105
|
110
|
110
|
120
|
140
|
160
|
180
|
200
|
|
ZP
|
206
|
225
|
249
|
249
|
282
|
302
|
332
|
342
|
370
|
386
|
406
|
450
|
490
|
535
|
606
|
660
|
723
|
|
FB
|
9
|
11.5
|
13.5
|
17.5
|
22
|
22
|
22
|
22
|
22
|
22
|
22
|
26
|
26
|
33
|
33
|
39
|
39
|
|
| |
|

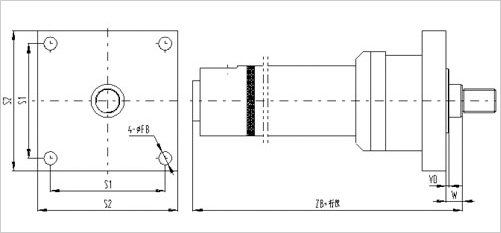

※頭部方法蘭型外形尺寸（YHG1-**/*×**F5-*L1*）
|
|
|
|
缸徑
|
40
|
50
|
63
|
80
|
90
|
100
|
110
|
125
|
|
ZB
|
198
|
213
|
234
|
260
|
280
|
310
|
320
|
335
|
|
VD
|
3
|
4
|
4
|
4
|
4
|
5
|
5
|
5
|
|
W
|
16
|
18
|
20
|
22
|
23
|
25
|
25
|
28
|
|
FB
|
9
|
11.5
|
13.5
|
17.5
|
22
|
22
|
22
|
22
|
|
S1
|
95
|
115
|
132
|
155
|
170
|
190
|
215
|
224
|
|
S2
|
115
|
140
|
160
|
190
|
210
|
230
|
255
|
265
|
|
